Apollo Hatch Hinge
 Museum Exhibits  Movie Props  Spacecraft Data  Educational Aids  Artifacts  About Us  Links
  • Apollo hatch hinge moves the hatch outward, then swings it aside.

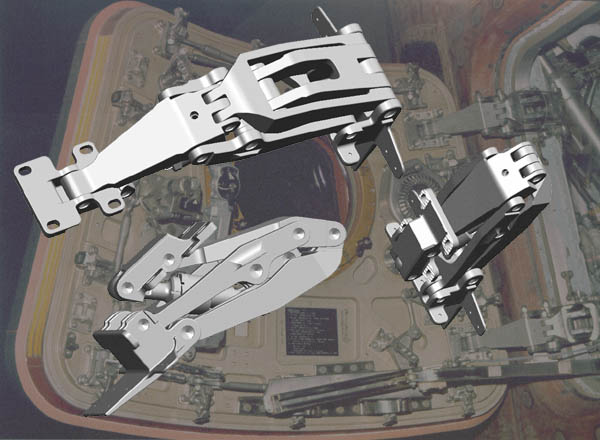

  • Photo shows Apollo 17 hatch, with computer model of hinge: extended, folded, and another folded view.
  • See the hinge opening motion in the image sequence below.
  • Side view drawings show the hinge folded and fully extended.
  • Based on 14 dimensioned Apollo engineering drawings by North American Aviation, Inc.

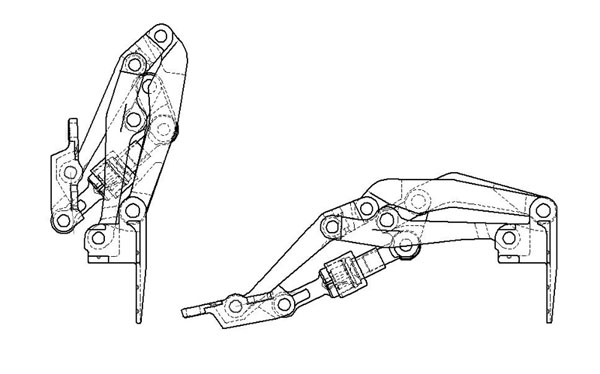

Apollo hatch hinge side view drawings, with hinge folded (left) and fully extended.

For more information on our exhibit design technique:
