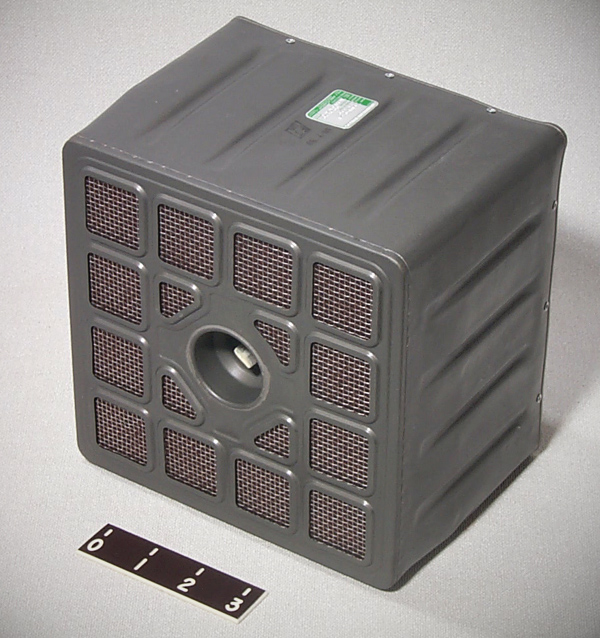

  • Lithium hydroxide (LiOH) canister used in the Command Module Environmental Control System.
  • Also known as a carbon dioxide absorber element, or scrubber.
  • Contains lithium hydroxide to absorb carbon dioxide, and carbon to remove odors from the cabin air.
  • Two were used at a time, and they were changed daily.
  • Apollo 15 Stowage List indicates a total of 30 canisters were taken for the flight.

This type of LiOH canister was made famous by the Apollo 13 mission, where the astronauts were forced to move into the Lunar Module (LM) for most of the flight. Having exhausted the capacity of the LM LiOH canisters, the Command Module (CM) canisters were needed. However, the square CM canisters did not fit into the round LM openings. So a workaround was devised using the CM canisters with hoses, tape, and other items.

Also see:

LM LiOH canister:

8 lbs. (4 kg)

NASA photo of the modified CM LiOH canister aboard the Apollo 13 LM..
