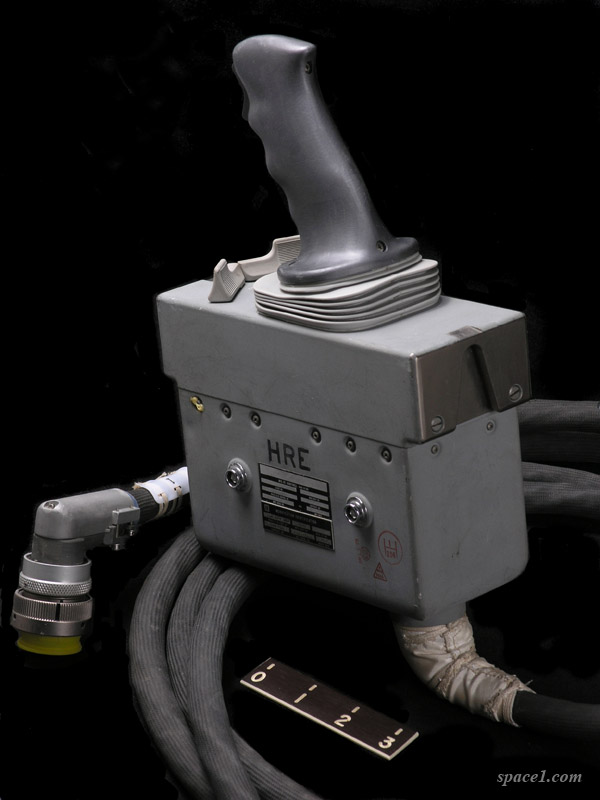

- Rotation Control (RC) for controlling the spacecraft attitude. (Also called attitude controller or rotation hand control.)
- Flown to lunar orbit as part of the Apollo 14 Command Module (CM).
- Was installed as RC1, mounted to the right of the center couch.
- Handle pivots at the palm for pitch up/down, through the center of the handle for yaw left/right, and inside the housing for roll left/right (see illustration at lower right).

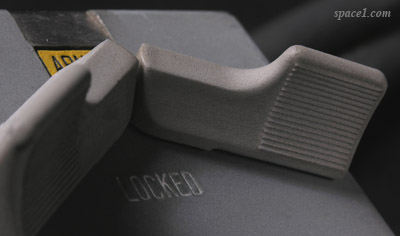

- Levers in front of the handle lock the handle or unlock it for operation.

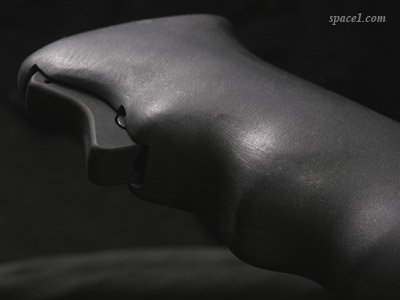

- Trigger switch activates astronaut’s headset microphone.
- NASA replaced the original flown grip with the spare grip now in place.
- Retains the original tamper seals on two screws (on side and bottom), indicating integrity of the unit.
- Removed from the Apollo 14 CM for use as a spare for Apollo missions to the Skylab space station (removal authorized 8-9-1972).
- Modified with “internal mechanical interface material changes to preclude stress corrosion” (Rockwell specification ME901-0704-0802).
- Honeywell Part No. CG166H8, Rockwell spec. ME901-0704-0702, Serial No. 10028AAK1056, Manufacture Date 7 April 1969.
- Modification Identification: Honeywell Part No. CG166H9, Rockwell spec. ME901-0704-0802, Acceptance Date 6-15-73.
Also see:
Another RC with cover removed:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Get a grip molded from this handle:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
10 lbs. (4.5 kg)
 |
|
|
|
|
|
|
|
|
|
 |
