Apollo LM Helium Explosive Valve
 Museum Exhibits  Movie Props  Spacecraft Data  Educational Aids  Artifacts  About Us  Links

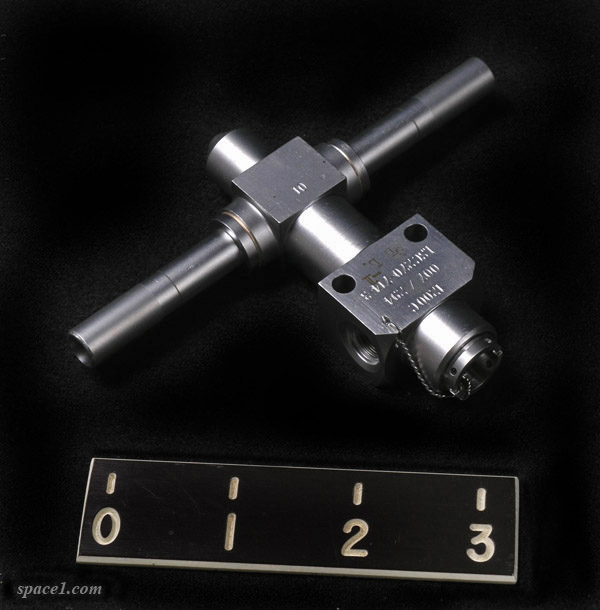

  • Explosive valve for the Lunar Module Descent Propulsion System.
  • Allowed helium to pressurize the fuel and oxidizer tanks.

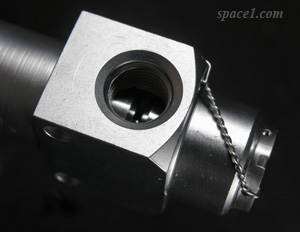

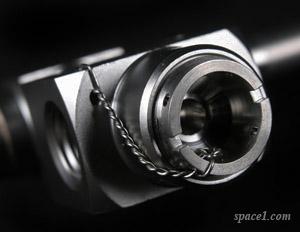

  • Two explosive cartridges would be installed on the threaded ports at one end of the valve. When activated by astronaut command the cartridges would fire, opening the valve.

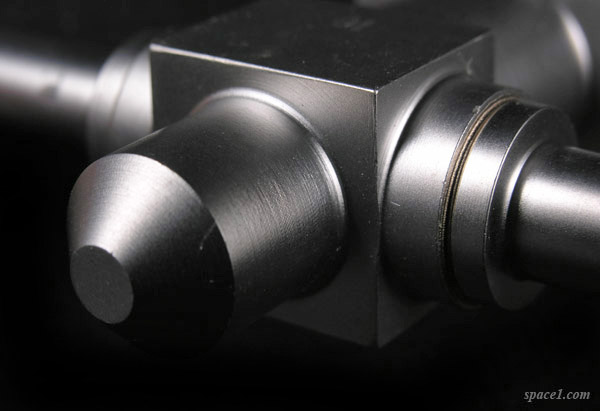

  • The valve body is machined from a single piece of aluminum. Gold brazing is added where the ports join the valve body.

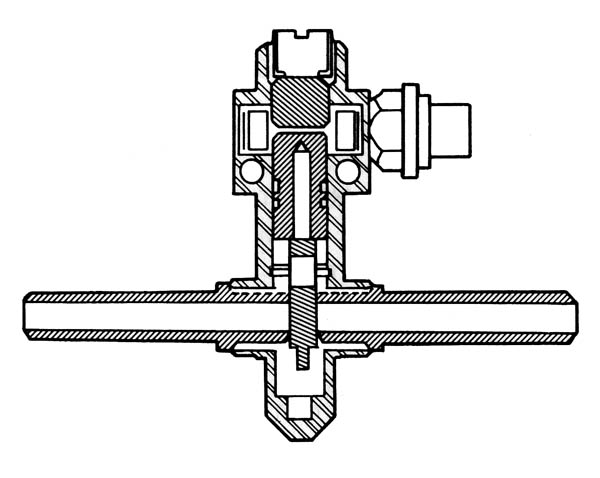

  • Cross section view shows internal parts.
  • Made by Pelmec Division, Quantic Industries, San Carlos, California.

0.43 lbs. (0.19 kg)

lm_expl_valve1_600

lm_expl_valve4_300

lm_expl_valve2_300

lm_expl_valve3_600
